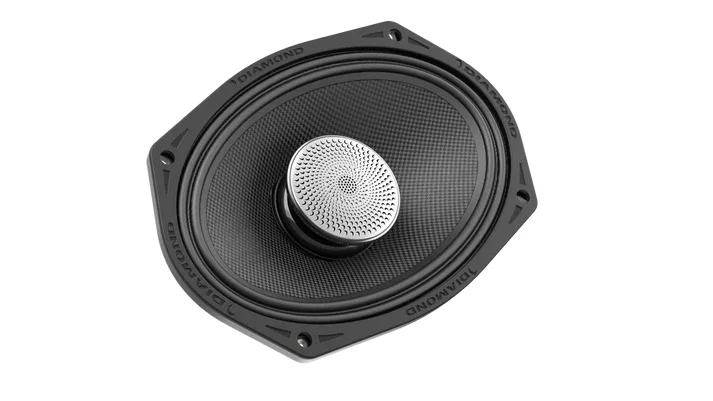

SPEAKER SIZE - 6X9"
SPEAKER TYPE - HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - DUAL
FIELD SERVICABLE VOICE COIL - YES
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE
BASKET MATERIAL - CAST ALUMINIUM
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 94
RE (OHM) [SERIES]: 3.2
QMS: 7.368
QES: 0.597
QTS: 0.552
FS (HZ): 104
VAS (L): 9
CMS (MM/N): 0.148
MMS (G): 15.6
SD (M2): 206.84
BL (T*M): 7.418
XMAX (MM): 1.2
POWER HANDLING RMS: 200
POWER HANDLING MAX: 400
MOUNTING DEPTH: IN.(MM):3.74" (95mm)
CUT OUT DIAMETER IN.(MM): 8.58 X 5.75(218mmn X 146mm)
OVER ALL DIAMETER IN.(MM): 9.19 X 6.38(233.5mm X 162mm)
OVER ALL HEIGHT IN.(MM):4.08" (103.7MM)
